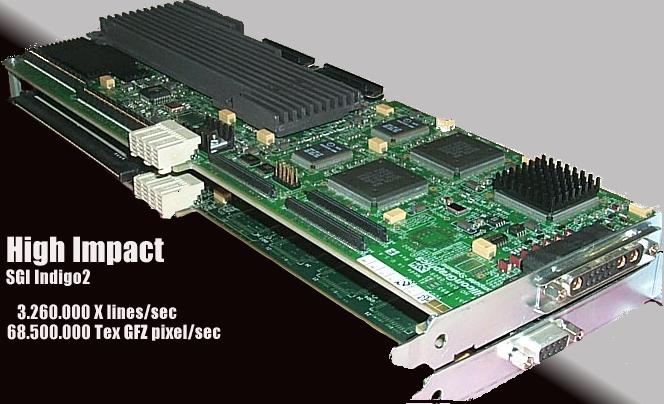

Indigo2 High Impact Graphics




Command Processor HQ3
Geometry Engine 1x GE11 (480 MFlops)
Raster Engine 1x RE4 120 Million pixels/second
Texture Engine 1x mit 1 MB Texture-RAM (max. 4 MB)
Max Framebuffer Memory Size 13.5 MB
Live Video port ja

X Lines 3D Depth Cued GZ Lines Flat Tri Strips No Z Lit GZ Tri/sec Lit Tex GZ Tri/sec Lit GZ Indep Quads
3.26 M 1.88 M 1.5 M 1.02 M 652 K 300 K

GF Pix/sec Tex GFZ Pix/sec Conv (3x3) Conv (5x5) Color Lookups/sec
120 M 68.5 M 20 M 20 M 50 M

DX CDRS DRV ADVS Light
7.4 32.36 4.62 10.90 0.97
Video Option: The IMPACT series video can support 2 simultaneous JPEG compression stream and digital IO in real time. It is an additional video board. This is probably due to the GIO64 architecture, it has a theoratical maximum bandwidth of 266Mb/s.
